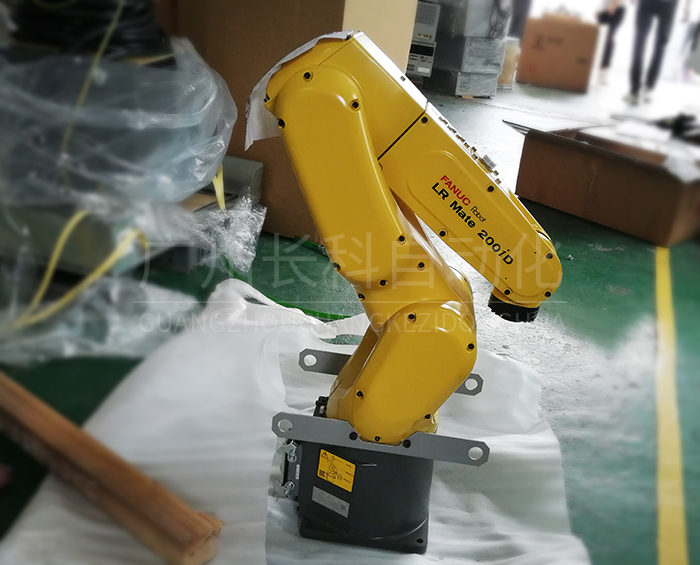

The FANUC LR Mate 200iD has a slim arm, so even when installed in a small space, the possibility of collision between the robot arm and surrounding devices can be minimized.

The LR Mate 200iD has the lightest mechanism among robots of the same class, making it easy to install inside processing machinery or perform top lifting installation.

The LR Mate 200iD achieves high-speed and smooth motion performance by using high rigidity arms and advanced servo control technology, which ensures no shaking even during high-speed movements.

The LR Mate 200iD is very convenient to use because the solenoid valve, air duct, additional shaft cable, sensor cable, and I/O cable used to control the device are all built into the arm, so the duct and cable do not wrap around the arm.

The LR Mate 200iD has achieved IP69K sealing performance in some models, further expanding its application range, such as cleanrooms.

The LR Mate 200iD can choose various intelligent functions, such as the robot linking function that can connect multiple robots for coordinated operations; The light floating function that can adjust the gripping position and angle according to the shape of the workpiece; The collision detection function that can sensitively detect collisions between robots and peripheral devices, thereby reducing damage.

The LR Mate 200iD can choose advanced intelligent features such as iRVision (built-in visual function) or parts assembly function using force sensors.

Optional models: Standard type (up to 717mm radius), Short arm type (up to 550mm radius), Long arm type (up to 911mm radius), Clean type, Waterproof type for corresponding cleaning, 5-axis high-speed type.

There are two models to choose from for the high-performance R-30iB Mate control device. One is the standard type that can be used with confidence even in environments with floating dust or oil mist by adopting a sealed structure, and the other is the compact type that can be used in clean environments.
