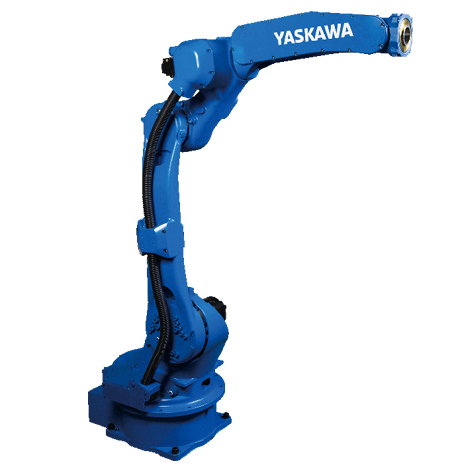

Basic parameters of Yaskawa Robot MOTOMAN-GP25:

TYPE：YP-1-06VXH25-A00-C

Load: 25 kg

Repetitive positioning accuracy: 0.06mm

Work area: 1730mm

Body weight: 250 kg

Body protection level: IP54;

Wrist protection level: IP67;

Control cabinet: YRC1000 (TYPE: ERAR-1000-06VXH25-A10-C)

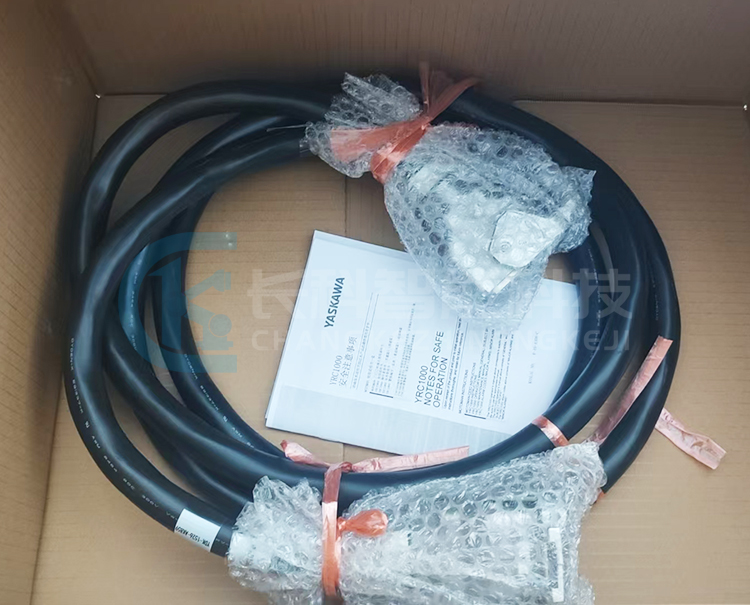

Power line: YDK-1526-AK859

Teaching pendant: JZRCR-APP11-1

Application scenarios: arc welding, handling, picking/packaging, palletizing, assembly/sub packaging. The Yaskawa robot MOTOMAN-GP25 also has a clean version, reaching Class 5 cleanliness level, and can operate in clean rooms, such as small panel handling.

The GP series robots launched by Yaskawa are produced by Yaskawa Changzhou factory. The GP series, as the successor to MH, received the favor of major factories when it was launched in the market in 2017.

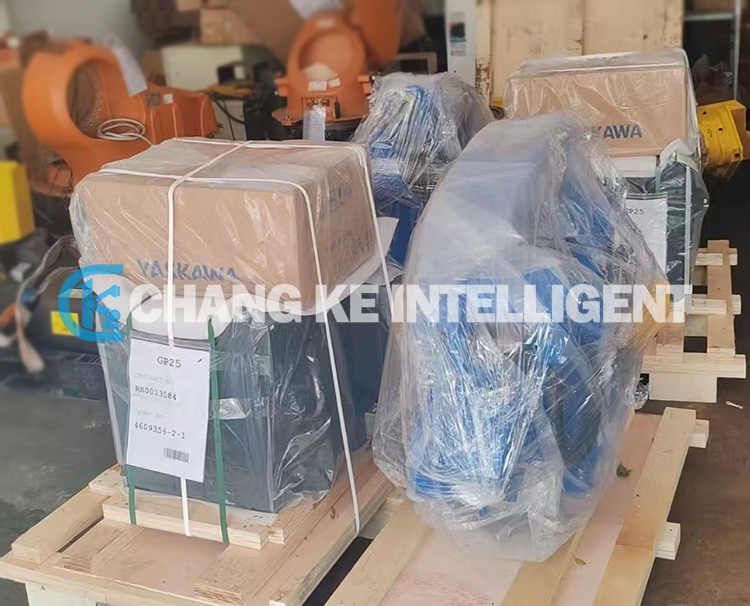

Yaskawa Electric Changzhou factory is more stringent in quality inspection than Japanese factories. Before each robot leaves the factory, the Yaskawa Electric Changzhou factory will connect the robot body and control cabinet one-on-one, with a load on the front for module testing. The technical requirement of the Japanese factory is 24 hours, but in order to dispel the concerns of domestic customers, the testing time at the Changzhou factory in China has doubled.
